Carrier® Vector® units can use several different battery chargers, including older black chargers and newer silver versions. Depending on the application, the charger may be 20A or 40A, and some versions also differ according to whether an integrated monitoring sensor is required.
Selecting the correct replacement is particularly important when replacing the older black-type charger, as not all newer chargers have the correct connector for the retrofit.
.png?width=670&height=377&name=UK_How%20to%20identify%20the%20correct%20Carrier%C2%AE%20Vector%C2%AE%20battery%20charger_KBA%20Images%20(1920%20x%201080%20px).png)

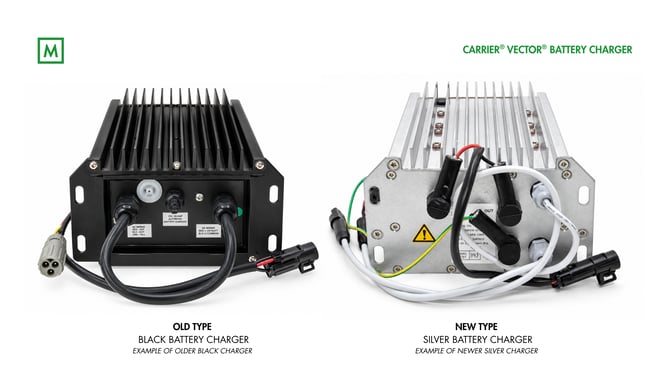

Replacing the old black Carrier® battery charger
The older black Carrier® battery charger, OEM reference 30-00434-00, has been replaced by the newer silver 20A battery charger.
When replacing an old black charger, the correct retrofit option is:
Myriad Part Number: MPN2805
Type: Silver 20A battery charger

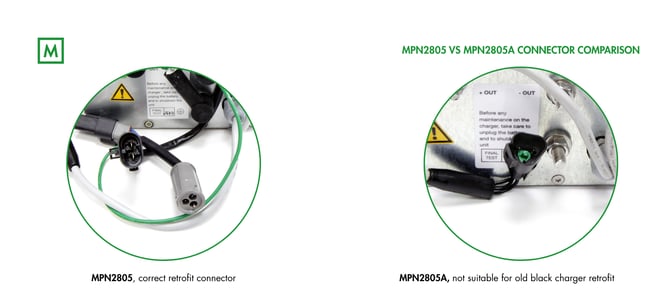

Important: MPN2805A cannot be used for this retrofit
The remanufactured MPN2805A does not have the correct plug or connector required to replace the older black-type 30-00434-00 charger.
If the unit currently has the old black battery charger, use MPN2805, not MPN2805A.
New silver Carrier® battery chargers
The newer silver battery chargers are available in 20A and 40A versions.
The correct version depends on the Carrier® Vector® application and the equipment fitted to the unit. Additional equipment, such as a tail lift or liftgate, can affect which charger and monitoring arrangement is required.

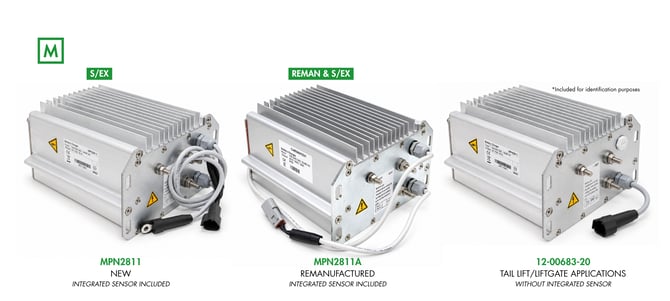

40A battery chargers
There are two important 12V / 40A configurations to consider. The correct version depends on the application and whether an integrated monitoring sensor is required.
12-00683-05, Myriad MPN2811 and MPN2811A
Carrier® OEM reference 12-00683-02 has been superseded by 12-00683-05.
Myriad supplies 12-00683-05 in two options:
Myriad Part Number: MPN2811
Condition: New product
OEM reference: 12-00683-05
Voltage: 12V
Output: 40A
Sensor: Included
Supply basis: Service Exchange
Warranty: 90 days
Myriad Part Number: MPN2811A
Condition: Myriad remanufactured product
OEM reference: 12-00683-05
Voltage: 12V
Output: 40A
Sensor: Included
Supply basis: Service Exchange
Warranty: 6 months
MPN2811 and MPN2811A have the same connectors, sensor, specifications, fitment and supplied configuration. The key difference is that MPN2811 is a new product, while MPN2811A is remanufactured. Both are supplied on a Service Exchange basis.
These 12V / 40A chargers are commonly used on Carrier® Vector® applications including:
- Vector® 1550
- Vector® 1850
- Vector® 1950
Both include the required integrated monitoring sensor.
12-00683-20, without sensor
Carrier® OEM reference 12-00683-20 is another 12V / 40A battery charger configuration, but unlike 12-00683-05, it is supplied without the integrated monitoring sensor.
This version is generally used on specific configurations where battery monitoring is handled separately, including applications fitted with a tail lift or liftgate.
Myriad does not currently have an MPN equivalent for 12-00683-20. The OEM reference is included in this guide to help with charger identification and to distinguish it from the sensor-equipped 12-00683-05 version.
Because the two 40A configurations are not necessarily interchangeable, always check the existing charger reference and installation before selecting a replacement.
Other Carrier® battery charger versions
Other battery chargers you may encounter include:
| Myriad Part Number | OEM Reference | Specification | Application / Notes |
|---|---|---|---|
| MPN2805 | Replaces 30-00434-00 |
20A | Correct retrofit for the older black Carrier® Vector® battery charger |
| MPN2805A | Remanufactured | Does not have the correct connector for retrofitting the old black 30-00434-00 charger | |
| MPN2811 | 12-00683-05 | 12V / 40A | Battery temperature sensor included. 12-00683-02 is superseded by 12-00683-05. Service Exchange. 90-day warranty |
| MPN2811A | 12-00683-05 | 12V / 40A, Remanufactured | Battery temperature sensor included. Service Exchange. 6-month warranty |
| MPN2818A | 12-00683-01 | 24V / 20A | Alternative Carrier® battery charger version |
| MPN2827 | 30-00460-06 | Used for Carrier® container refrigeration applications |
How to identify the correct battery charger
Before ordering a replacement charger, check the following:
- Is the existing charger black or silver?
If it is the older black 30-00434-00 charger, use MPN2805 as the retrofit replacement. - Does the application require a 20A or 40A charger?
Do not select a replacement based on appearance alone. - Is additional equipment fitted?
Check whether the unit has equipment such as a tail lift or liftgate, as this may affect the battery monitoring arrangement. - For a 40A application, is a monitoring sensor required?
12-00683-05 / MPN2811 includes the integrated sensor.
12-00683-20 is supplied without the sensor. - Check the OEM reference on the existing charger.
Where possible, confirm the part number directly from the charger label before ordering.
Quick reference
Old black charger 30-00434-00?
Use MPN2805.
Can MPN2805A be used instead?
No. The remanufactured MPN2805A does not have the correct connector for the old black charger retrofit.
Need a standard 12V / 40A charger with sensor?
Use MPN2811 / Carrier® 12-00683-05.
Existing reference 12-00683-02?
This has been superseded by 12-00683-05 / MPN2811.
40A application without the integrated sensor?
Check whether 12-00683-20 is required, particularly on configurations where battery monitoring is handled separately.
Still unsure which charger you need?
If you are unsure which battery charger is fitted to your Carrier® Vector® unit, check the OEM reference on the charger label, the unit model, and whether any additional equipment such as a tail lift is fitted.
Providing Myriad with a clear photograph of the existing charger and its identification label can also help confirm the correct replacement before ordering.
