Choosing the correct Valeo® TM compressor is not just about matching the TM model number. To select the right compressor, you need to check the clutch voltage, pulley type and manifold or hose connection orientation.
This guide covers the Valeo® TM13, TM15, TM16 and TM21 compressors listed by Myriad and explains the key specifications used to identify each configuration.
Why the TM model number is not enough
The TM model number is the starting point, but it does not confirm the full compressor specification.
For example, two compressors may both be Valeo® TM15 compressors, but they may have different:
- Clutch voltages
- Pulley types
- Pulley groove configurations
- Manifold or hose connection orientations
- Mounting or compressor configurations
These additional specifications need to be identified alongside the TM model to narrow down the correct compressor.
What to check before selecting a Valeo® TM compressor

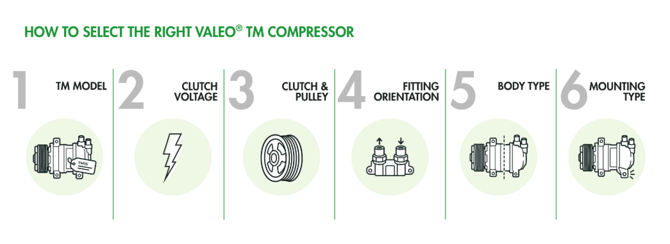

Use the following six points to identify the compressor configuration:
- TM model
- Clutch voltage
- Clutch and pulley type
- Fitting orientation
- Body type
- Mounting type
1. Compressor model
Start by identifying the TM model of the compressor.
The Myriad range covered by this guide includes:
- TM13
- TM15
- TM16
- TM21
- 12V
- 24V
- 3E, 3-eye rubber damper
- LS, leaf spring
- 1AG
- 2AG
- 6PV
- 8PV
- No fitting / PAD
- Horizontal
- Vertical
- Vertical inverted
- Ear
- Direct
- Alternator

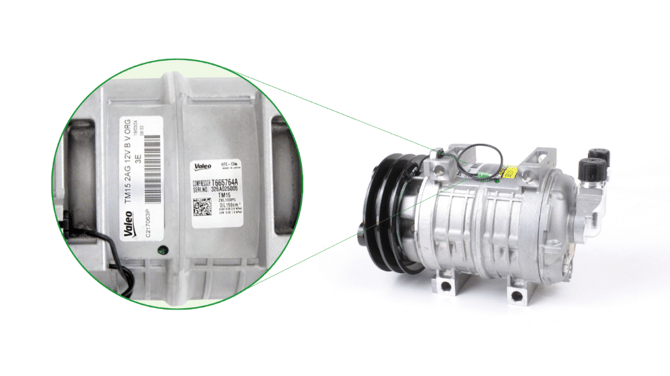

The TM model can be found on the compressor label.
Compressors within the same TM model range are available in different configurations, so continue through the remaining identification points before selecting the Myriad part.
2. Clutch voltage
Identify the voltage of the magnetic clutch.
The Valeo® TM compressors listed by Myriad include:
- 12V
- 24V
The clutch voltage is included in the Myriad product description.
3. Check the clutch and pulley type
Check the pulley type fitted to the compressor.
Next, identify the magnetic clutch configuration and pulley fitted to the compressor.

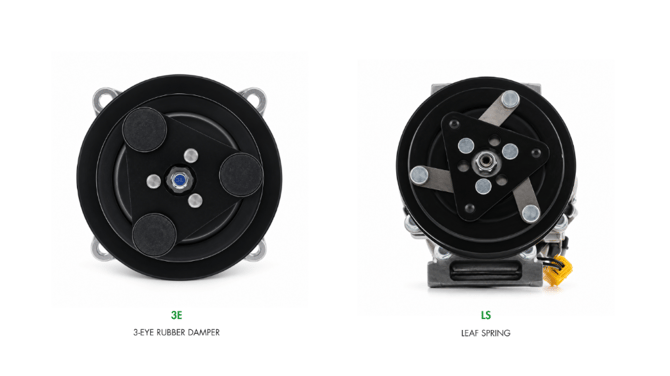

Clutch armature type
The clutch armature plate may be:
- 3E, 3-eye rubber damper
- LS, leaf spring
These can be identified visually from the front of the clutch.

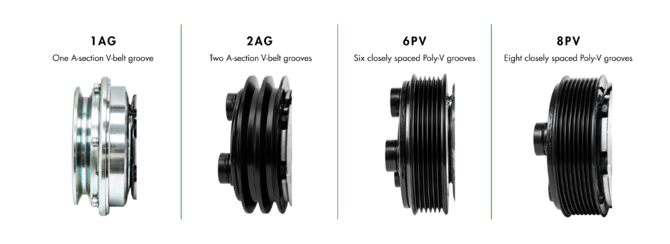

Pulley type
Check the groove configuration of the pulley.
Myriad Valeo® TM compressor listings include pulley configurations such as:
- 1AG
- 2AG
- 6PV
- 8PV
For example, 2AG identifies a two A-groove pulley, while 8PV identifies an eight-groove Poly-V pulley.
The clutch armature and pulley groove configuration can be checked visually against the compressor being replaced.

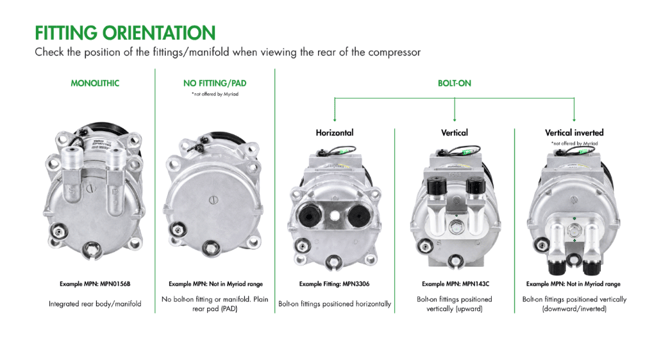

4. Check the fitting orientation
Check the manifold or hose connection arrangement at the rear of the compressor.
Valeo® TM compressor fitting configurations can include:
- No fitting / PAD
- Horizontal
- Vertical
- Vertical inverted
Horizontal, vertical and vertical inverted configurations use bolt-on fittings.
The orientation can be identified by looking at the position of the refrigerant connections on the rear of the compressor.

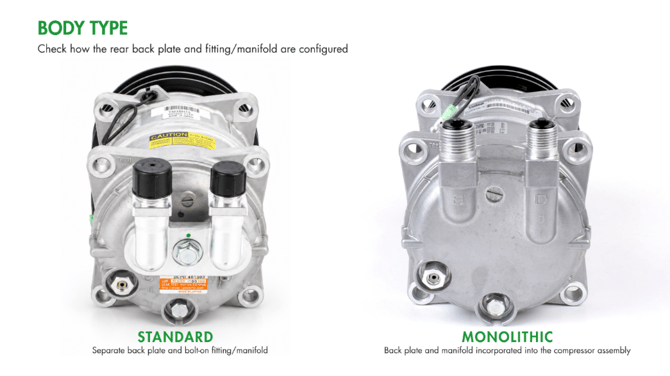

5. Check the body type
Identify whether the compressor has a standard or monolithic body configuration.
Standard
A standard compressor has a separate back plate with a bolt-on manifold.
The manifold or fitting arrangement can then be identified separately, for example horizontal or vertical.
Monolithic
On a monolithic compressor, the back plate forms part of the compressor and the manifold is incorporated as one assembly.
The difference can be identified by comparing the rear of the compressor with the standard and monolithic examples.
6. Check the mounting type
Finally, identify the mounting configuration of the compressor.

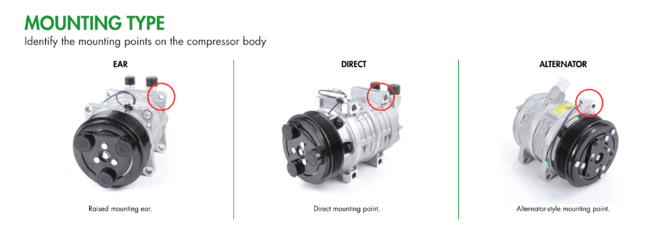

The Valeo® TM mounting types shown in the selector include:
- Ear
- Direct
- Alternator
The mounting type can be identified by looking at the mounting points on the compressor body and comparing them with the relevant example.
Quick Valeo® TM compressor selection checklist
Before selecting a compressor, identify all six specifications:
|
Check |
What to identify |
|
TM model |
TM13, TM15, TM16 or TM21 |
|
Clutch voltage |
12V or 24V |
|
Clutch and pulley type |
3E or LS armature, plus pulley groove configuration |
|
Fitting orientation |
No fitting / PAD, horizontal, vertical or vertical inverted |
|
Body type |
Standard or monolithic |
|
Mounting type |
Ear, direct or alternator |
Current Myriad Valeo® TM Compressor Range
Use the tables below to help narrow down the correct compressor once you have confirmed the required model, voltage, pulley type and connection orientation.
Valeo® TM13 Compressors
| MPN | Compressor |
|---|---|
| MPN0131 | Valeo® TM13XS Compressor, 12V, 2AG, VOR, R452A / R404A / R134A |
| MPN0132 | Valeo® TM13XS Compressor, 12V, 8PV, VOR, R452A / R404A / R134A |
Valeo® TM15 Compressors
| MPN | Compressor |
|---|---|
| MPN0136 | Valeo® TM15XS Compressor, 24V, 8PV, VOR, R452A / R404A / R134A |
| MPN0139 | Valeo® TM15XS Compressor, 24V, 2AG, VOR, R452A / R404A / R134A |
| MPN0141 | Valeo® TM15XS Compressor, 12V, 2AG, VOR, R452A / R404A / R134A |
| MPN0141B | Valeo® TM15XS Compressor, 12V, 2AG, VOR, Monolithic |
| MPN0141C | Valeo® TM15XS Compressor, 12V, 2AG, VOR, R134A, Direct Mount |
| MPN0141D | Valeo® TM15XS Compressor, 12V, 1AG, VOR, with Speed Reduction Clutch |
| MPN0143 | Valeo® TM15XS Compressor, 12V, 8PV, VOR, R452A / R404A / R134A |
| MPN0143A | Valeo® TM15XS Compressor, 12V, 8PV, VOR, Leaf Spring Monolithic |
| MPN0143C | Valeo® TM15XS Compressor, 12V, 6PV, VOR, R134A, Direct Mount |
Valeo® TM16 Compressors
| MPN | Compressor |
|---|---|
| MPN0130 | Valeo® TM16XS Compressor, 24V, 8PV, VOR, R452A / R404A / R134A |
| MPN0137 | Valeo® TM16XS Compressor, 24V, 2AG, VOR, R452A / R404A / R134A |
| MPN0144 | Valeo® TM16XS Compressor, 12V, 2AG, VOR, R452A / R404A / R134A |
| MPN0144C | Valeo® TM16XS Compressor, 12V, 8PV, VOR, R134A, Direct Mount |
| MPN0156 | Valeo® TM16XS Compressor, 12V, 8PV, VOR, R452A / R404A / R134A |
| MPN0156B | Valeo® TM16XS Compressor, 12V, 8PV, VOR, Leaf Spring Monolithic |
| MPN0156C | Valeo® TM16XS Compressor, 12V, 2AG, VOR, R134A, Direct Mount |
Valeo® TM21 Compressors
| MPN | Compressor |
|---|---|
| MPN3006 | Valeo® TM21XS Compressor, 2AG, 24V |
| MPN3008 | Valeo® TM21XS Compressor, 2AG, 12V |
| MPN3017 | Valeo® TM21XS Compressor, 8PV, 12V |
| MPN3021 | Valeo® TM21XS Compressor, 8PV, 24V |
| MPN3021B | Valeo® TM21XS Compressor, 8PV, 24V, with Manifold |
| MPN3025 | Valeo® TM21XS Compressor, 8PV, 24V, VOR, Monolithic |
Still not sure which Valeo® TM compressor you need?
If you are unsure which compressor is correct, send Myriad the following information:
- Clutch voltage
- Clutch and pulley type
- Manifold or hose connection orientation, vertical, horizontal or none
Clear photos showing the compressor, clutch and pulley, and the rear manifold or hose connection arrangement can also help our team with identification.
Summary
Selecting a Valeo® TM compressor involves identifying six key specifications:
TM model + clutch voltage + clutch and pulley type + fitting orientation + body type + mounting type
Use these specifications together to identify the correct Valeo® TM13, TM15, TM16 or TM21 compressor from the Myriad range.
